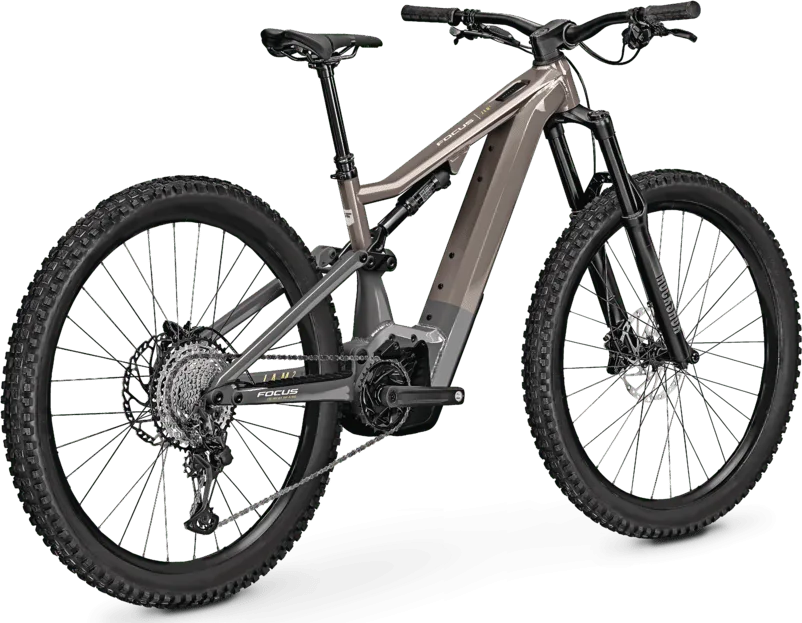

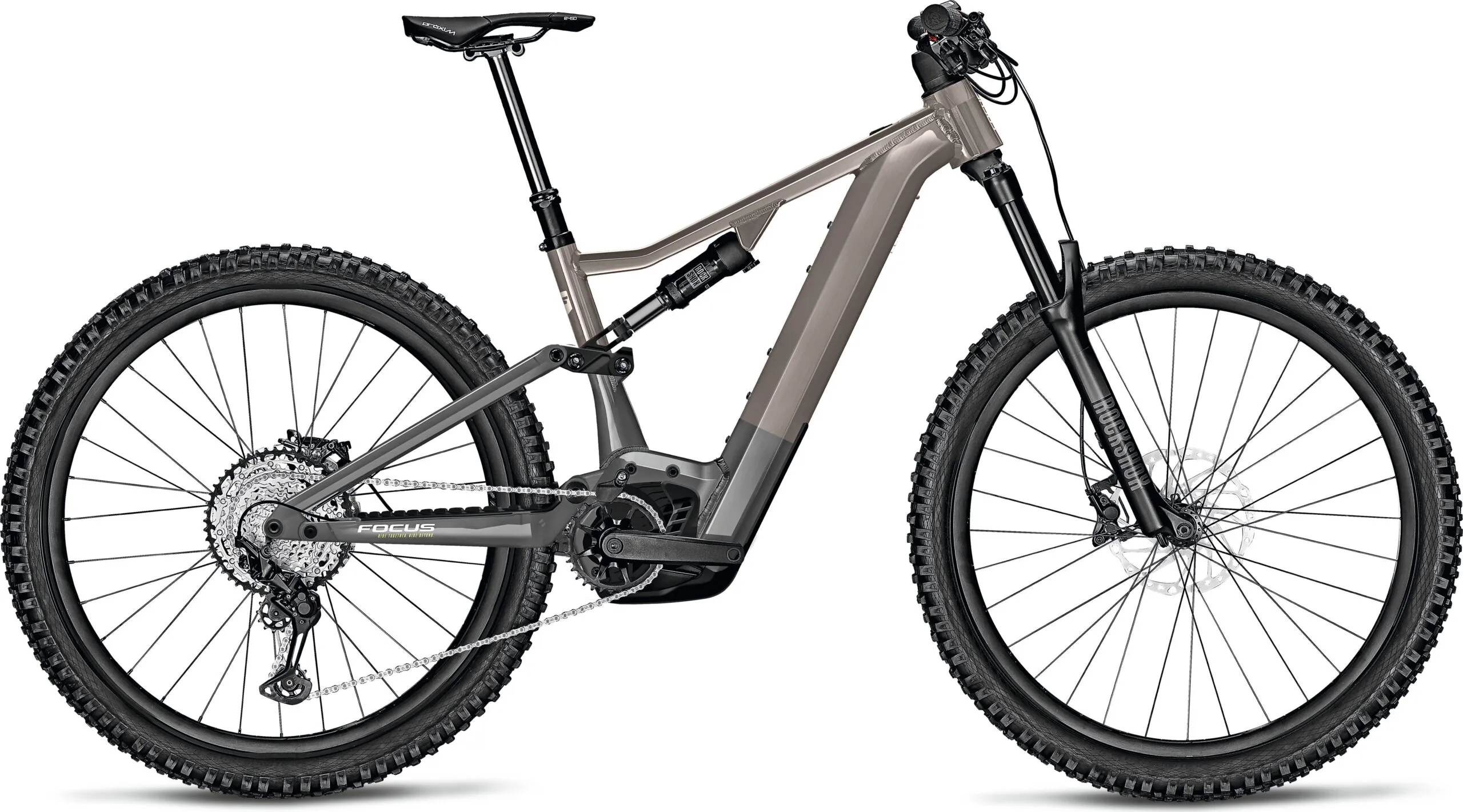

FOCUS JAM2 6.7 2023

ESPECIFICACIONES
CUADRO
7005 hydroformed aluminium, 3D forging, 150 mm F.O.L.D. kinematics, 148×12 mm thru axle, internal cable routing, post mount 203 mm
RECORRIDO HORQUILLA
Aluminium
HORQUILLA
DVO Diamond E3, 110×15 mm, 44 mm rake
TRAVEL FORK
160 mm
AMORTIGUADOR
Rock Shox Deluxe Select, 210/55 mm, Hardware: 25.0 x 8.0 mm, no Bushing
MOTOR
Bosch Performance CX Gen4, 85 Nm, 250 W
WH BATERÍA
625 Wh
BATERÍA AMPERIOS HORAS
17,4 Ah
MOSTRAR
Bosch LED Remote
PULSADORES
Shimano Deore M6100, 12-speed
CAMBIO
Shimano Deore RD-M6100, 12-speed
CASSETTE
Shimano Deore CS-M6100, 12-speed
CADENA
Shimano Deore CN-M6100, 12-speed
BIELAS
Samox EC40 ISIS
DESARROLLOS
front: 36, rear: 10-51
PEDALIER
Integrated in Drive Unit
MANILLAR
Aluminium, 800 mm, rise: 30 mm, backsweep: 9°
POTENCIA
FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium
TIJA DE SILLIN
ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated, 1.5/1.8″ angle headset
SILLIN
Selle Royal Groove
TIJA DE SILLÍN
Post Moderne dropper post PM-214, 34.9 mm
FRENOS
Shimano MT520, 4-piston, hydraulic disc brake
MANETAS DE FRENO
Shimano MT501
FRENOS
Disc
AROS
RODI TRYP30, 30-622
BUJES TRASEROS
Novatec D462SB, 12×148 mm
BUJES DELANTROS
Novatec D041, 15×110 mm
CUBIERTAS
Maxxis Minion DHF, EXO, 63-622
GUARDABARROS
plastic
MARCHAS
12
PESO EN KG. INCLUYENDO BATERÍA
24,9
TALLA
39,42,44,46
